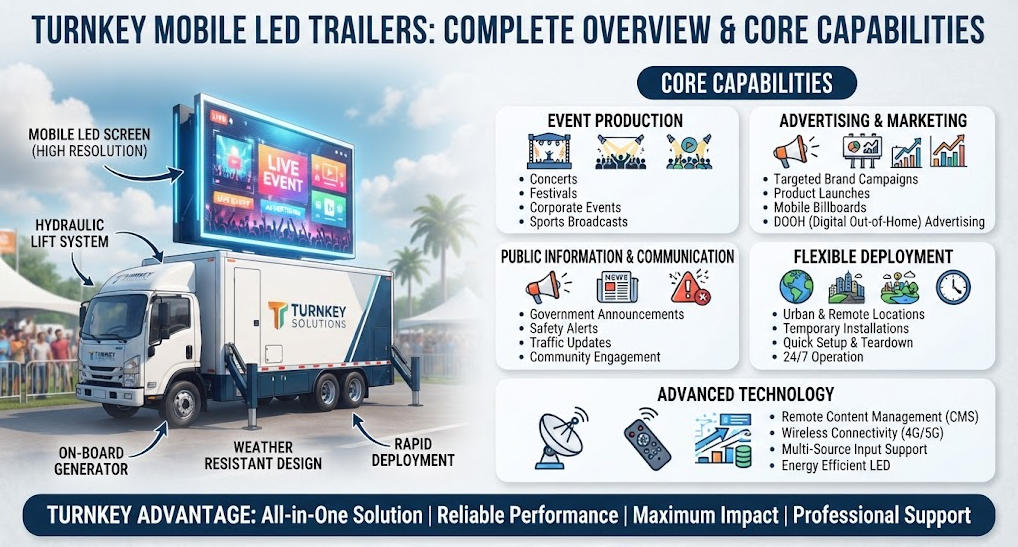

Turnkey Mobile LED Trailers: Complete Overview & Core Capabilities
A turnkey mobile LED screen trailer for sale is a self-contained visual broadcasting station engineered on a heavy-duty vehicular chassis. It incorporates a hydraulic telescoping mast, an ultra-bright outdoor LED display (up to 7,500 nits), an onboard silent generator, and a broadcast-grade control rack. This setup allows single-operator deployment at live concerts, sporting events, outdoor movie screenings, and dynamic mobile billboard campaigns.
Commercial event producers and municipal agencies demand agility. Traditional ground-supported truss displays demand extensive structural engineering permits, dedicated rigging crews, ballast weights, and hours of manual labor. A Jumbotron trailer bypasses these site constraints entirely. Transporting high-impact digital signage on a certified mobile platform enables quick site setup, high audience engagement, and immediate tear-down once an event concludes.
Mobile LED Trailer Definition: A unified, road-legal mobile digital display platform consisting of a Department of Transportation (DOT) compliant chassis, a 360-degree rotating telescoping hydraulic lift mast, an IP65-rated outdoor LED video wall, and self-contained electrical generation for autonomous outdoor audiovisual production.
Equipped with industry-proven Outdoor Rental LED Displays, each mobile unit maintains high color uniformity and sunlight-rejection contrast, even in direct summer sunlight. Whether operating as an outdoor event LED truck or a standalone towable trailer, the platform ensures reliable video performance without requiring external electrical or structural infrastructure.
The Guanhong 15-Minute 'RapidDeploy' Protocol: Efficiency vs. Traditional Staging
Conventional temporary LED setups require substantial labor. Assembling a 16x9 ft truss-mounted video wall requires four certified riggers roughly four hours to stage the base, build trusses, fly the screen cabinets, and wire the power distribution. This process introduces high labor costs, scheduling complexity, and physical fatigue.
To eliminate these bottlenecks, Guanhong Display created the RapidDeploy 4-Step Velocity Framework. This protocol reduces setup time to 15 minutes with a single operator.
The Guanhong RapidDeploy 4-Step Velocity Framework
Step 1: Auto-Leveling Stability: Position the trailer and engage the 4-point hydraulic outriggers. Built-in digital bubble levels ensure high chassis balance on uneven grass, gravel, or asphalt within 3 minutes.
Step 2: Dual-Stage Vertical Lift: Activate the dual-cylinder hydraulic mast via push-button or wireless pendant remote to smoothly raise the LED display to a clearance height of up to 6 meters (20 feet) in under 4 minutes.
Step 3: 360-Degree Orientation: Hydraulically rotate the screen assembly to face the primary audience line-of-sight and secure the mechanical locking collar.
Step 4: One-Touch Power & Video Sync: Fire up the sound-dampened onboard generator and initialize the pre-wired control rack running High Refresh Rate LED Processors to begin broadcasting live video.
| Operational Metric | Guanhong RapidDeploy Trailer | Traditional Staging / Ground Truss |
|---|---|---|
| Setup Time | 15 Minutes | 3.5 to 5 Hours |
| Crew Required | 1 Technician | 4 to 6 Certified Riggers |
| Tear-down Time | 10 Minutes | 2.5 to 4 Hours |
| Weather Wind Safety | Instant Hydraulic Retraction | Complex Manual De-rigging |
| Labor Cost per Event | Minimal (~1 Man-Hour) | High (30+ Total Man-Hours) |
Chassis Engineering, Suspension & Highway Safety Standards
A mobile display must withstand real-world transport conditions. When trailering a large display at 65 mph on interstate highways, harsh vibration profiles can degrade solder joints, cause surface-mounted diode (SMD) failures, and damage flat-ribbon connections. Guanhong Display solves this by manufacturing chassis built to strict NHTSA and US Department of Transportation (DOT) specifications.
Our dual-axle and tri-axle trailers use heavy-duty multi-leaf spring suspension combined with integrated hydraulic dampeners. This suspension architecture absorbs low-frequency road shocks and high-frequency vibrations before they transfer to the LED structural frame.
Lead Structural Engineer Insight (Guanhong Display R&D): "Transport-induced harmonic resonance is the primary cause of dead pixels in low-tier LED trailers. By tuning our leaf-spring dampening coefficients and mounting the screen on secondary vibration-absorbing rubber bushings, we reduce peak G-force impacts on the screen face by over 74% during highway transit."
Highway safety features include:
DOT-Certified Dual Axles: Rated for up to 14,000 lbs (6,350 kg) GVWR with integrated electric trailer braking systems and emergency breakaway switches.
Industrial Coating: Hot-dip galvanized steel subframes coated with anti-corrosive automotive polyurethane paint to protect against salt, rain, and UV exposure.
DOT-Compliant LED Lighting: Side markers, stop-tail lights, and reflective tape configurations that meet all North American road safety standards.
Hydraulic Mast Dynamics: 360° Rotation and Structural Wind Load Ratings
The core of our hydraulic LED screen vehicle system is a multi-stage, chrome-plated hydraulic telescoping mast. It lifts the screen smoothly from its transport cradle to a 6-meter screen-top height. An integrated heavy-duty slew bearing drive allows full 360-degree rotation, enabling operators to position the display for optimal viewing without uncoupling or moving the tow vehicle.
Wind loads present a serious safety challenge for large-format outdoor screens. A raised 16x9 ft display acts as a solid sail in open fields and parking lots. Guanhong Display tests every mast assembly to strict structural standards.
Wind Load Engineering: Certified for operational stability up to Force 8 on the Beaufort scale (40 mph / 64 km/h) without auxiliary guy wires.
Dual Locking Pins: Fail-safe mechanical locking pins relieve hydraulic line pressure once the screen reaches full height, preventing accidental drift or descent.
Integrated Anemometer: Optional wind speed sensors continuously read ambient velocity and sound an alert to lower the mast if gusts exceed rated operating limits.

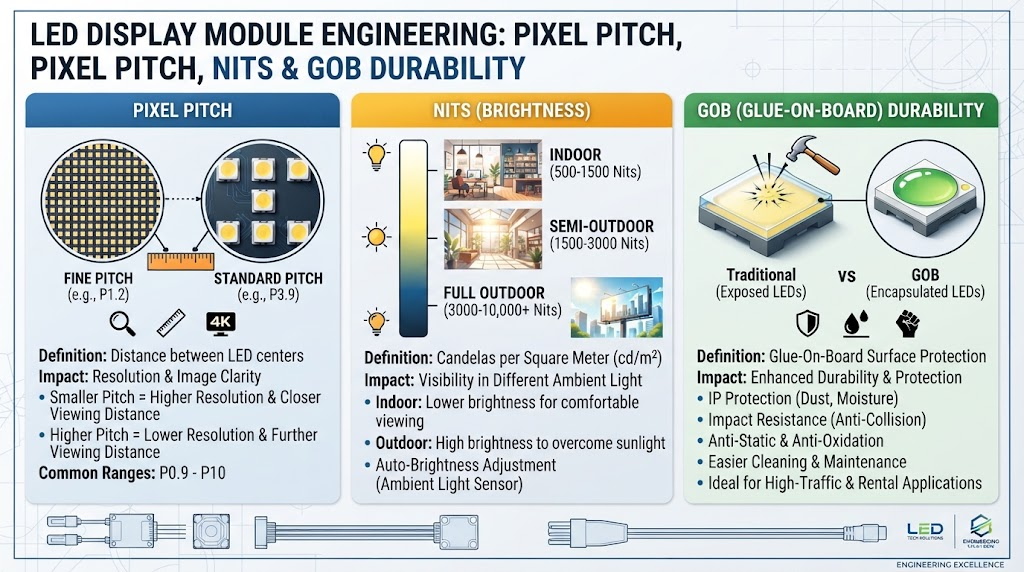

LED Display Module Engineering: Pixel Pitch, Nits & GOB Durability
Outdoor mobile displays require fine image clarity up close alongside extreme brightness under midday sun. Guanhong Display equips mobile trailers with premium outdoor SMD and advanced GOB (Glue-on-Board) modules tailored to mobile environments.
High-contrast outdoor modules deliver between 5,500 and 7,500 nits of calibrated luminance. This output ensures clear daylight readability, even in direct sunlight. Integrated light sensors also automate dimming at night to maintain viewer comfort and comply with local municipal lighting ordinances.
For mobile applications, we recommend evaluating GOB vs SMD Outdoor Technology. GOB encapsulates the LED diodes in a transparent epoxy layer, protecting them from physical impacts, moisture, dust, and highway debris during transport.
| Specification Metric | P2.97 Outdoor | P3.91 Outdoor (Standard) | P4.81 Outdoor |
|---|---|---|---|
| Pixel Pitch | 2.97 mm | 3.91 mm | 4.81 mm |
| Optimal Viewing Distance | 8 ft – 80 ft (2.5m – 25m) | 12 ft – 150 ft (4m – 45m) | 16 ft – 250 ft (5m – 75m) |
| Peak Brightness (Nits) | 5,500 – 6,000 Nits | 6,500 – 7,500 Nits | 6,500 – 7,500 Nits |
| Refresh Rate | 3,840 Hz (Flicker-Free) | 3,840 Hz – 7,680 Hz | 3,840 Hz |
| Ingress Protection | IP65 Front / IP54 Rear | IP65 Front / IP65 Rear | IP65 Front / IP65 Rear |
| Encapsulation Options | SMD1921 / GOB Option | SMD1921 / SMD2727 / GOB | SMD2727 / SMD3535 |
Every Guanhong Display screen uses IC driver chips supporting a 3,840Hz+ refresh rate. This eliminates scan lines and screen flickering during live 4K video recording, high-speed sports broadcasts, and local news coverage.
Integrated Power & Control Systems: Onboard Generators to Novastar Processors
A reliable mobile LED trailer requires stable electrical power and straightforward video routing. Our units feature a pre-wired, shock-isolated onboard equipment bay that operates independently of local power grids.
Electrical power is supplied by an integrated, ultra-quiet diesel generator (such as Kubota or Cummins systems) mounted in an acoustic-dampened compartment. These generators produce operational noise levels under 58 dBA at 7 meters—quiet enough for golf tournaments, outdoor church gatherings, and film screenings.
The control rack features:
Novastar Video Processing: Industry-standard Novastar VX-series or UHD controllers with built-in scaling, PIP (picture-in-picture), and low-latency switching.
Multi-Input Switchboard: Seamless switching between HDMI, SDI, DVI, optical fiber, and wireless transmission feeds.
Cloud Connectivity & 4G/5G Router: Remote content scheduling, live diagnostics, and billboard advertising updates managed from any location.
Audio Integration: Marine-grade outdoor soundbars or dual horn speakers built into the mast frame with wireless microphones and Bluetooth inputs.
Shore Power Transfer Switch: Lets operators plug directly into 220V/50A event shore power when available, bypassing the generator to cut fuel use and emissions.
Investment Economics, Price Ranges & Rental ROI Analysis
Investing in a turnkey mobile LED trailer for sale offers attractive unit economics for production rental businesses, media agencies, and municipalities. Turnkey systems range between $45,000 and $120,000, depending on display dimensions, pixel pitch, mast height, and generator configuration.
Buying direct from a specialized manufacturer like Guanhong Display reduces upfront capital costs compared to local reseller markups, accelerating your payback timeline.
| Revenue & Cost Category | Per Event / Unit | Annual Total (35 Events/Year) |
|---|---|---|
| Average Daily Event Rental Fee | $2,200 – $3,500 | $94,500 (Base Average) |
| Off-Event Mobile Billboard Ad Revenue | $500 / Day | $25,000 (50 Days Deploy) |
| Operating Fuel & Maintenance Costs | ($120 / Event) | ($4,200) |
| Insurance, Licensing & Storage | — | ($3,800) |
| Net Projected Annual Cashflow | — | $111,500 / Year |
Most commercial operators achieve full capital payback within 7 to 14 months. The rapid 15-minute setup allows one technician to manage multiple event locations over a single weekend, maximizing billable hours with minimal crew overhead.
Frequently Asked Questions About Mobile LED Trailers
Do I need a commercial driver's license (CDL) to tow a mobile LED trailer?
Most standard mobile LED trailers weigh between 3,500 lbs and 7,500 lbs (1,600 kg to 3,400 kg) GVWR. Because their total weight sits well below the 10,001-lb/26,001-lb CDL thresholds in the United States, they can be towed with a standard driver's license using a standard half-ton or three-quarter-ton pickup truck (e.g., Ford F-150, Chevrolet Silverado 1500).
What routine maintenance does a mobile LED trailer require?
Maintenance covers three core areas:
Generator Servicing: Change engine oil and fuel filters every 150–250 operational hours.
Hydraulic System: Check hydraulic fluid levels quarterly and lubricate the 360-degree rotation bearing every six months.
Chassis & Axles: Inspect brake shoe wear, grease wheel bearings, and check tire pressure every 3,000 miles.
How difficult is it to replace an LED module if damage occurs on the road?
Our displays feature front- and rear-accessible magnetic or screw-locked modular designs. If a pixel module is damaged by an impact, a technician can replace it with a pre-calibrated spare module in under 2 minutes using a magnetic service tool—no soldering or cabinet dismantling required.
What warranty and factory support does Guanhong Display provide?
Guanhong Display provides an extensive 2-to-3 year comprehensive factory warranty covering LED modules, Novastar processors, hydraulic components, and structural trailer welds. We maintain a full inventory of replacement parts ready for global express dispatch, supported 24/7 by our technical engineering team.
Request a Custom Mobile LED Trailer Quote from Guanhong Display
Build a high-performance visual asset for your fleet. Contact Guanhong Display engineers today for factory-direct pricing, custom chassis options, and global shipping logistics.
Get a Custom Trailer Quote
