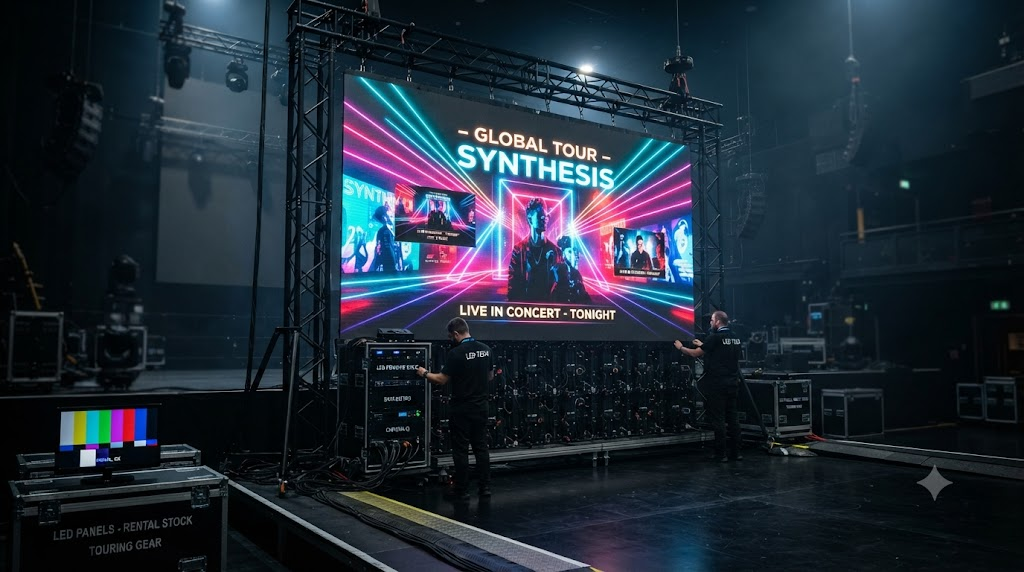

What is an Indoor Rental LED Screen for Touring?

In the high-stakes world of global concert tours and corporate events, the Indoor Rental LED Screen for Touring serves as the visual backbone of the stage. Unlike fixed installations, these screens are engineered for "life on the road." They must survive constant vibration, rapid temperature shifts, and hundreds of assembly cycles without pixel failure.

Guanhong Display has pioneered the integration of structural aerospace-grade materials with fine-pitch SMD technology. This ensures that every panel provides both the durability required for transport and the high-definition clarity needed for front-row spectators. Whether you are building a massive backdrop or a complex 3D stage set, the touring series is designed for versatility.

The Guanhong 3-S Rigging Protocol: Speed, Strength, and Seamlessness

An indoor rental LED screen for touring must be more than just a display; it must be a precision-engineered tool. Our engineering team developed the Guanhong 3-S Rigging Protocol to address the three most critical pain points in event production.

High-performance touring LED screens are modular display systems engineered for rapid assembly, ultra-portability, and extreme structural durability. These screens utilize lightweight die-cast aluminum or carbon fiber cabinets to facilitate quick transitions between tour dates while maintaining broadcast-quality visual fidelity through high refresh rates and precision pixel alignment.

1. Speed: By utilizing ergonomic fast-locks, a single technician can secure a cabinet in under 5 seconds. This drastically reduces labor costs and shortens the "load-in" window.

2. Strength: Each cabinet is tested to withstand a vertical tensile load of 1000kg. This allows for massive hanging arrays without the risk of structural fatigue or cabinet warping.

3. Seamlessness: High-precision positioning pins ensure that the gap between cabinets is less than 0.05mm. This creates a truly monolithic visual experience, even when viewed from inches away.

Mechanical Engineering Excellence: Fast Locks and Positioning Pins

The reliability of a touring LED screen depends on its mechanical integrity. At Guanhong, we focus on the hardware that holds the pixels together.

Definition: Fast Locks are mechanical engagement systems that use a spring-loaded or rotary lever to lock adjacent LED cabinets together instantly without external tools.

• Curve Locks: Our advanced curving system allows for +/- 15 degrees of adjustment. This enables stage designers to create concave or convex waves, circles, and pillars with a single cabinet type.

• Positioning Pins: These stainless steel guides act as the primary alignment tool. They ensure that the die-cast aluminum LED panel sits perfectly flush before the fast locks are even engaged.

• Single-Handed Operation: The handles are ergonomically placed so that a rigger can hold the cabinet with one hand and engage the lock with the other, increasing safety at heights.

Precision Specifications: The 500x500mm Standard

Consistency is vital for logistics. We have standardized our touring series on the 500x500mm footprint. This size offers the perfect balance between surface area and weight management for flight case efficiency.

By keeping the weight below 7kg, we reduce the total load on the venue's roof motors. This allows for larger screens to be hung in venues with weight restrictions, a common challenge in older theaters and convention centers.

Safety and Compliance: TUV and UL94 V-0 Standards

Safety is the non-negotiable foundation of our manufacturing process. When thousands of fans are standing beneath a 20-ton LED wall, "good enough" is not an option.

"In our recent tensile strength testing, we pushed our die-cast frames to 1200kg before any structural deformation occurred. We cap our official rating at 1000kg to provide a significant safety buffer for touring environments." — Lead Mechanical Engineer, Guanhong Display

• TUV Safety Certification: Our rigging hardware has undergone rigorous testing by TUV Rheinland to ensure it meets international standards for overhead lifting.

• UL94 V-0 Flame Retardant: All plastic components and PCB coatings are rated UL94 V-0. This means if a fire occurs, the material will stop burning within 10 seconds, preventing the screen from becoming a fire hazard in enclosed venues.

Visual Performance for Broadcast and Live Events

Touring screens often serve a dual purpose: providing visuals for the live audience and serving as a backdrop for televised broadcasts or live streams. To achieve this, the fine pitch LED video walls we produce utilize high-end driver ICs.

A refresh rate of 7680Hz ensures that even the most advanced high-speed cameras won't detect scan lines or flickering. Furthermore, our color calibration process ensures that if you rent additional panels in different cities, the color temperature and gamma curves remain identical across the entire display. This is critical for maintaining brand integrity for corporate sponsors.

For more details on keeping your screen in top shape during a tour, refer to our LED Screen Maintenance Guide.

Touring LED Screen FAQs

How many cabinets can I hang in a single column?

Thanks to our 1000kg tensile strength rating, you can safely hang up to 20 cabinets vertically (10 meters) with a 5:1 safety factor. Always consult a certified rigger for specific venue calculations.

Is front maintenance possible during a show?

Yes. Our touring modules are magnetic and feature a front-eject tool system. A failed module can be swapped out from the front in less than 30 seconds without dismantling the entire cabinet.

How does the weight affect logistics costs?

Reducing cabinet weight from 10kg to 7kg can reduce total tour freight costs by up to 30%. In 2026, with rising fuel surcharges, this weight reduction provides a significant ROI for AV rental companies.
