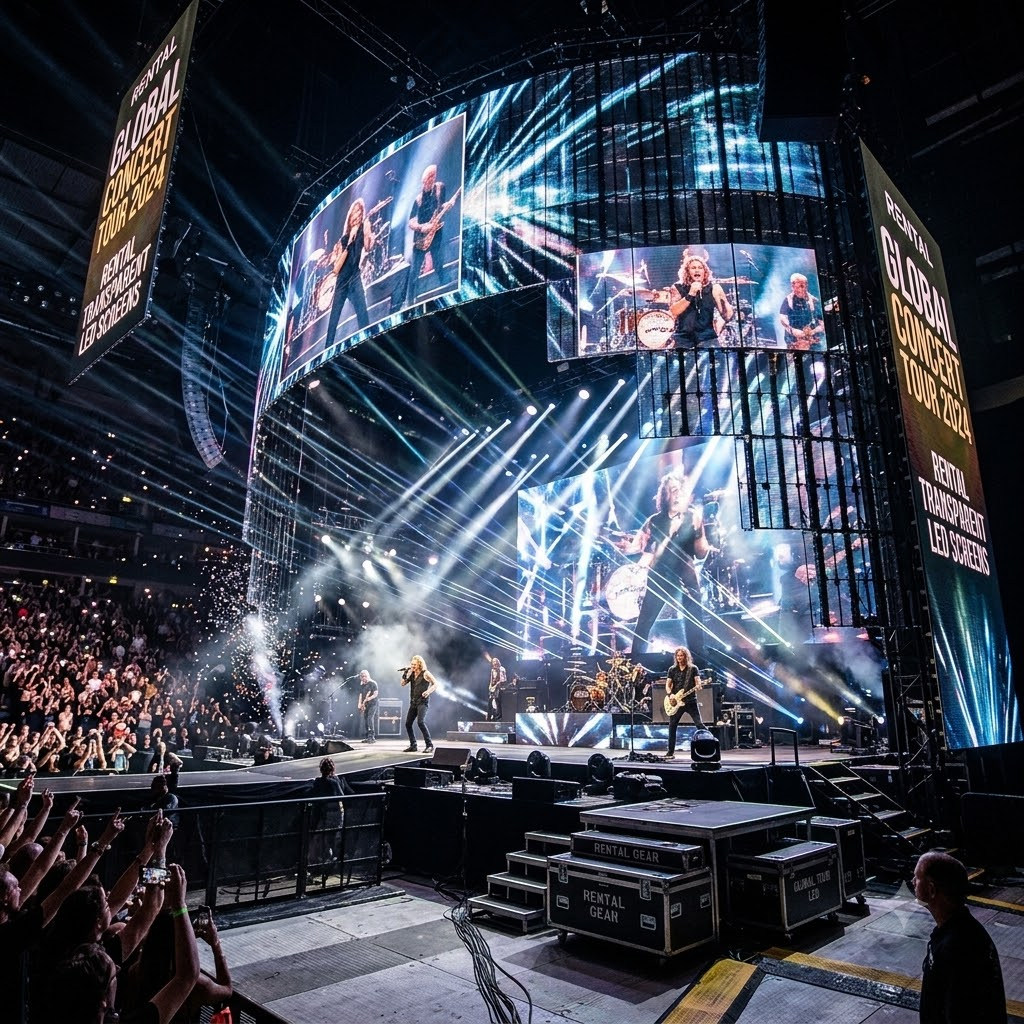

High-Performance Rental Transparent LED Screens for Global Touring

Modern concert production demands visual depth that traditional solid walls cannot provide. Guanhong Display engineers Rental LED Display Solutions that merge high transparency with the ruggedness required for life on the road.

What is a Touring Transparent LED Screen?

A touring transparent LED screen is a modular, high-transparency display designed for rapid assembly and disassembly during live event circuits. Unlike fixed installations, these screens use specialized lightweight frames and quick-lock mechanisms to facilitate daily load-ins.

These systems offer up to 85% transparency, allowing lighting designers to place moving heads and pyrotechnics behind the screen. This creates a multi-layered visual environment where digital content and physical light effects coexist seamlessly.

"Transparency in 2026 is no longer just about seeing through the screen; it is about the aerodynamic and structural freedom it gives to massive outdoor rigs." — Zhang Wei, Chief Engineer at Guanhong Display

The Guanhong Swift-Tour Protocol: 10-Second Rigging Methodology

We developed the Swift-Tour Protocol to address the most expensive variable in touring: labor time. Our system focuses on three pillars: Alignment, Engagement, and Locking.

• Self-Aligning Pins: Magnetic vertical guides ensure the cabinet drops into place without manual adjustment.

• One-Action Fast Locks: A proprietary lever system allows a technician to secure a 1000x500mm cabinet in exactly 10 seconds.

• Cable-Free Internal Connectors: Power and data bridge automatically upon locking, eliminating the "spaghetti" of external jumpers.

Technical Engineering: Die-Cast Aluminum vs. Carbon Fiber Frames

Choosing the right frame material is critical for weight-sensitive Fine Pitch LED Walls and large-scale touring screens. In our testing, we utilize two primary architectures:

While carbon fiber is lighter, die-cast aluminum remains the industry standard for rental transparent LED screens due to its superior heat dissipation and mechanical durability during rough handling.

Visual Excellence: High Grayscale at Low Brightness

Touring environments often require screens to operate at 20-30% brightness for intimate indoor segments. Standard screens often suffer from "grayscale loss" at these levels, causing banding in gradients.

Guanhong utilizes high-end PWM (Pulse Width Modulation) Driving ICs. This technology ensures the screen maintains full 16-bit grayscale even when dimmed. With a refresh rate of 7680Hz, our screens are fully compatible with high-speed cameras used in XR filming and live broadcast, as certified by AVIXA standards.

Touring Logistics: Flight Case Standards and Edge Protection

The screen is only as good as its protection. Every Guanhong Technical Support & Maintenance package includes touring-grade flight cases.

• Edge Protection Design: Each cabinet features integrated flip-down protectors that shield the fragile SMD pixels at the corners during stacking.

• Shock-Absorbing Casters: High-density EVA foam lining absorbs vibrations from truck transport.

• Compact Form Factor: Our 6-in-1 flight cases are optimized for standard 96-inch truck widths, maximizing trailer space and reducing carbon footprints.

Safety and Compliance: TUV-Certified Hanging Bars and Wind-Load Resistance

Safety is non-negotiable for overhead rigging. All Guanhong hanging bars undergo rigorous TUV Rheinland certification for weight-load capacity.

The Aerodynamic Advantage: Solid LED walls act like sails in the wind. Our transparent mesh design reduces wind-load by approximately 40%. This allows for higher builds in outdoor festival environments where traditional screens would require a complete show halt due to wind speeds.

Sustainability Metrics: Power Consumption vs. Transparency

Transparent screens are inherently more energy-efficient. Because the "black" areas of an image are simply empty space (unlit LEDs), power consumption is significantly lower than a traditional panel displaying the same content.

Furthermore, the open-air structure allows for natural convection. This eliminates the need for heavy, power-hungry cooling fans, contributing to a quieter stage environment and lower operational costs over a 50-city tour.

Frequently Asked Questions About Touring LED Screens

How fast can a 100sqm screen be installed?

Using the Guanhong Swift-Tour Protocol, a crew of four can typically rig a 100-square-meter screen in under 2.5 hours, including signal testing.

What is the typical pixel pitch for touring?

For large concerts, a 3.9mm/7.8mm combo (horizontal/vertical) is the industry sweet spot, balancing transparency and resolution.

Are these screens weather-rated?

Yes, we offer IP65-rated touring versions specifically designed for outdoor festivals that require protection against rain and dust.
