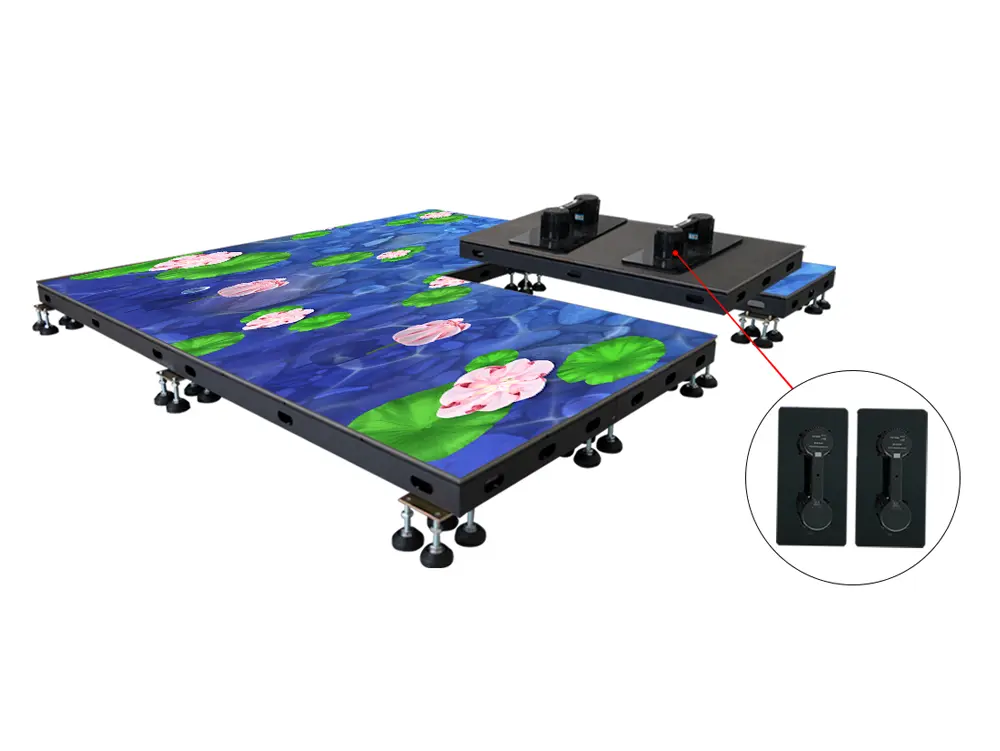

Interactive LED Dancing Floor Screen for Fixed and Rental Installation
Smart Interactive LED Floor Display: Built for Performance, Durability, and Immersive Experiences(Indoor and Outdoor for Your Choosing)
Interactive LED floor displays are transforming event spaces, exhibitions, retail environments, museums, entertainment venues, and corporate showrooms. Designed to withstand heavy foot traffic while delivering stunning visual performance, our Smart Interactive LED Floor Display combines durability, safety, and advanced display technology in one innovative solution.
Key Advantages of Our Interactive LED Floor Display
1. Excellent Waterproof and Moisture-Resistant Protection
The LED floor display modules are engineered with specially designed bottom housings, protective masks, power cables, and signal cables that incorporate waterproof and moisture-resistant materials. Manufactured using low moisture-absorption raw materials and enhanced through multiple sealing processes, the display provides reliable protection against humidity and environmental exposure.
Benefits:
Effective resistance to moisture and water ingress
Enhanced durability in demanding indoor environments
Reduced maintenance requirements
Front and rear protection rated up to IP45
2. Anti-Slip and Wear-Resistant Surface
Safety and durability are essential for floor-mounted LED displays. The protective surface is manufactured using premium imported PC (Polycarbonate) material, offering excellent wear resistance, flexibility, and stability across both high and low temperatures.
Based on advanced mechanical engineering principles, the surface provides outstanding anti-slip performance while maintaining exceptional load-bearing capability.
Benefits:
Safe walking surface for visitors
Highly resistant to scratches and abrasion
Suitable for high-traffic applications
Reliable performance in varying temperature conditions
3. Ultra-High Load Capacity
Every component of the interactive LED floor display is carefully engineered according to structural mechanics principles. The result is an exceptionally strong platform capable of supporting substantial loads without compromising performance.
Benefits:
Maximum load capacity of up to 2,000 kg per square meter
Ideal for exhibitions, auto shows, shopping malls, and public venues
Supports heavy equipment and vehicle displays
4. Silent and Efficient Heat Dissipation

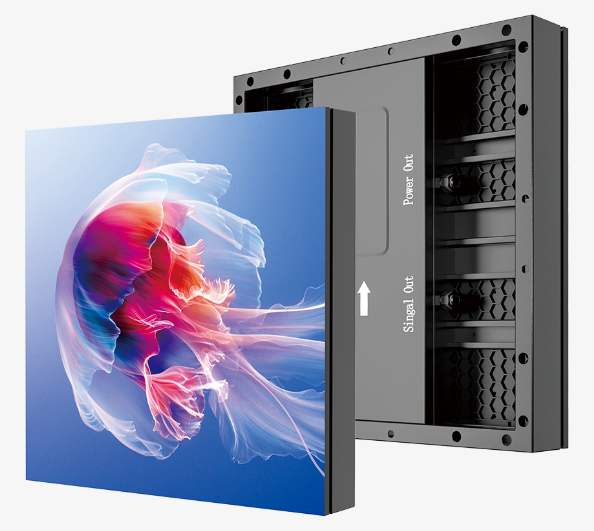

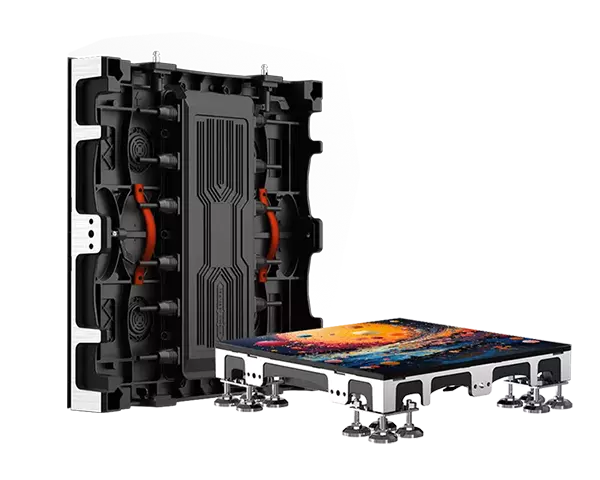

The display cabinet features a die-cast aluminum power box with excellent thermal conductivity. Combined with a specially designed heat dissipation system developed by our professional R&D team, the display maintains optimal operating temperatures while minimizing noise.
Benefits:
Stable long-term operation
Reduced operating temperatures
Silent performance for indoor environments
Improved system reliability and lifespan
Technical Specifications
Specification | P2.5 | P2.6 | P2.976 | P3.91 | P4.81 | P5.2 | P6.25 |
Pixel Pitch | 2.5mm | 2.6mm | 2.976mm | 3.91mm | 4.81mm | 5.2mm | 6.25mm |
LED Type | SMD1415/1515 (Optional) | SMD1415/1515 (Optional) | SMD1415/1515 (Optional) | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
Pixel Density (pixels/m²) | 160,000 | 147,456 | 112,896 | 65,536 | 43,264 | 36,864 | 25,600 |
Module Resolution | 100×100 | 96×96 | 84×84 | 64×64 | 52×52 | 48×48 | 40×40 |
Module Size (mm) | 250.85×250.85×18 | 250.85×250.85×18 | 249.8×249.8×18 | 249.8×249.8×18 | 249.6×249.6×18 | 248.6×249.6×18 | 249.4×249.4×18 |
Cabinet Size (mm) | 500×500×78 | 500×500×78 | 500×500×78 | 500×500×78 | 500×500×78 | 500×500×78 | 500×500×78 |
Cabinet Resolution | 200×400 | 192×384 | 168×336 | 128×256 | 104×208 | 96×192 | 80×160 |
General Specifications
Item | Specification |
Maximum Power Consumption | 400W/Cabinet |
Average Power Consumption | 200W/Cabinet |
Input Voltage | AC 100-240V, 50/60Hz |
Brightness | 1,200 cd/m² |
Refresh Rate | 1,920Hz – 7,680Hz |
Viewing Angle | 150° Horizontal / 150° Vertical |
Cabinet Weight | 21.1 kg |
Maximum Load Capacity | 2,000 kg/m² |
Protection Rating | IP45 (Front & Rear) |
Ideal Applications
Our interactive LED floor display is perfect for:
Auto Shows and Vehicle Launches
Exhibition and Trade Show Booths
Shopping Malls and Retail Spaces
Museums and Science Centers
Theme Parks and Entertainment Venues
Corporate Showrooms
Hotels and Event Halls
Stage Performances and Interactive Installations
Frequently Asked Questions (FAQs)
Q1: How much weight can the LED floor display support?
The display is engineered to support up to 2,000 kg per square meter, making it suitable for heavy foot traffic, exhibition equipment, and even vehicle displays.
Q2: Is the floor display waterproof?
Yes. The display features multiple waterproof sealing processes and offers an IP45 protection rating on both the front and rear sides, providing excellent resistance to moisture and water splashes.
Q3: Is the surface safe for pedestrians?
Absolutely. The protective mask is manufactured from high-quality polycarbonate (PC) material and is specifically designed with anti-slip properties to ensure visitor safety.
Q4: Can the display operate continuously for long periods?
Yes. The die-cast aluminum cabinet and advanced thermal management system provide efficient heat dissipation, ensuring stable 24/7 operation in demanding environments.
Q5: Which pixel pitch should I choose?
P2.5 / P2.6: Best for close viewing distances and premium indoor applications.
P2.976: Excellent balance between resolution and cost.
P3.91 / P4.81: Ideal for general exhibitions and event installations.
P5.2 / P6.25: Suitable for larger viewing distances and cost-sensitive projects.

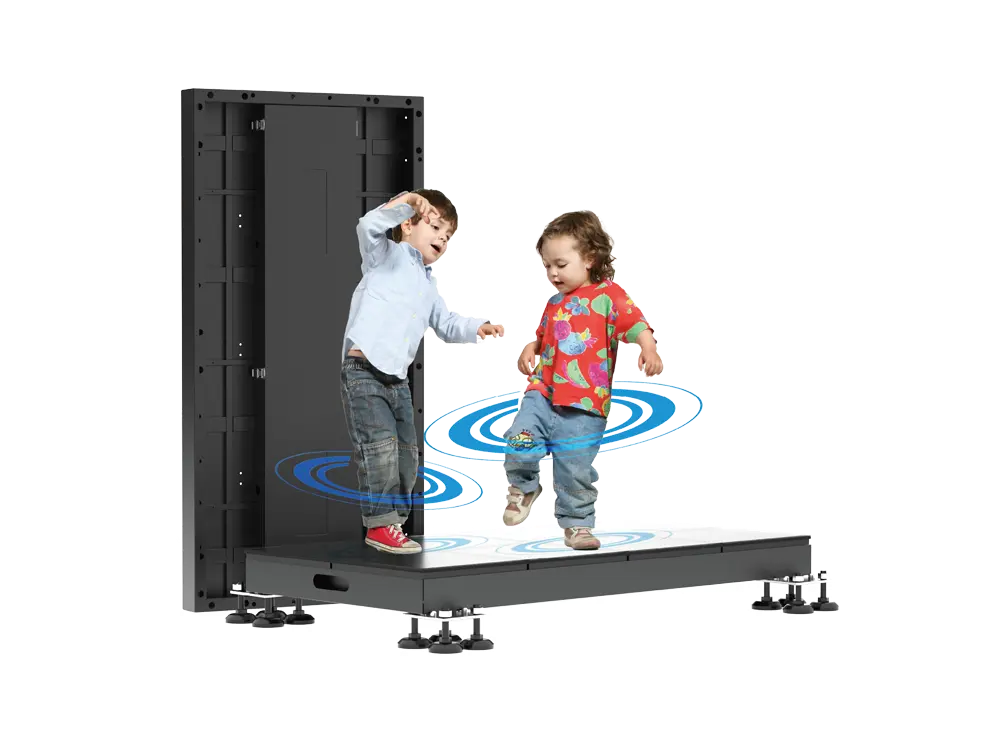

Q6: Does the display support interactive functions?
Yes. The LED floor display can be integrated with interactive sensor systems, allowing real-time visual effects that respond to footsteps, movement, and user interaction.
Q7: What is the refresh rate of the display?
The display supports refresh rates from 1,920Hz up to 7,680Hz, ensuring smooth visuals, flicker-free camera performance, and professional broadcasting quality.
Q8: What environments is this product best suited for?
This product is ideal for indoor commercial and entertainment environments, including exhibitions, shopping malls, museums, corporate events, showrooms, and interactive digital experiences.
Bring your floor to life with a durable, interactive LED display solution that combines stunning visuals, exceptional strength, and reliable performance.
